01
Door Components
Door Jambs
Sample
Door Jamb Specifications
Widths Available4 9/16", 6 9/16", 7 1/4", 8 1/2"
Lengths84" and 100"
Thickness1 1/4"
FinishSmooth White / Wood Grain
MaterialCellular PVC
Rot-ProofMoisture Resistant2 Textures
Profile Drawings
4 9/16" Jamb
6 9/16" Jamb
7 1/4" Jamb
8 1/2" Jamb
02
Exterior Trim
Brick Mould
Classic PVC brick mould for exterior door and window casings. Resists weathering and rot.
Profile Drawing
Profile Drawing — Brick Mould
Brick Mould Specifications
Width2.00"
Thickness1.24"
Lengths84" and 100"
FinishSmooth White / Wood Grain
ApplicationExterior door & window casing
Exterior GradeWeather ResistantPaintableStainable
03
Structural
T-Bar / LVL Mull Post
PVC-wrapped LVL mullion posts for multi-door applications. Standard and heavy-duty sizes available with optional T-Bar shoe.
Profile Drawing

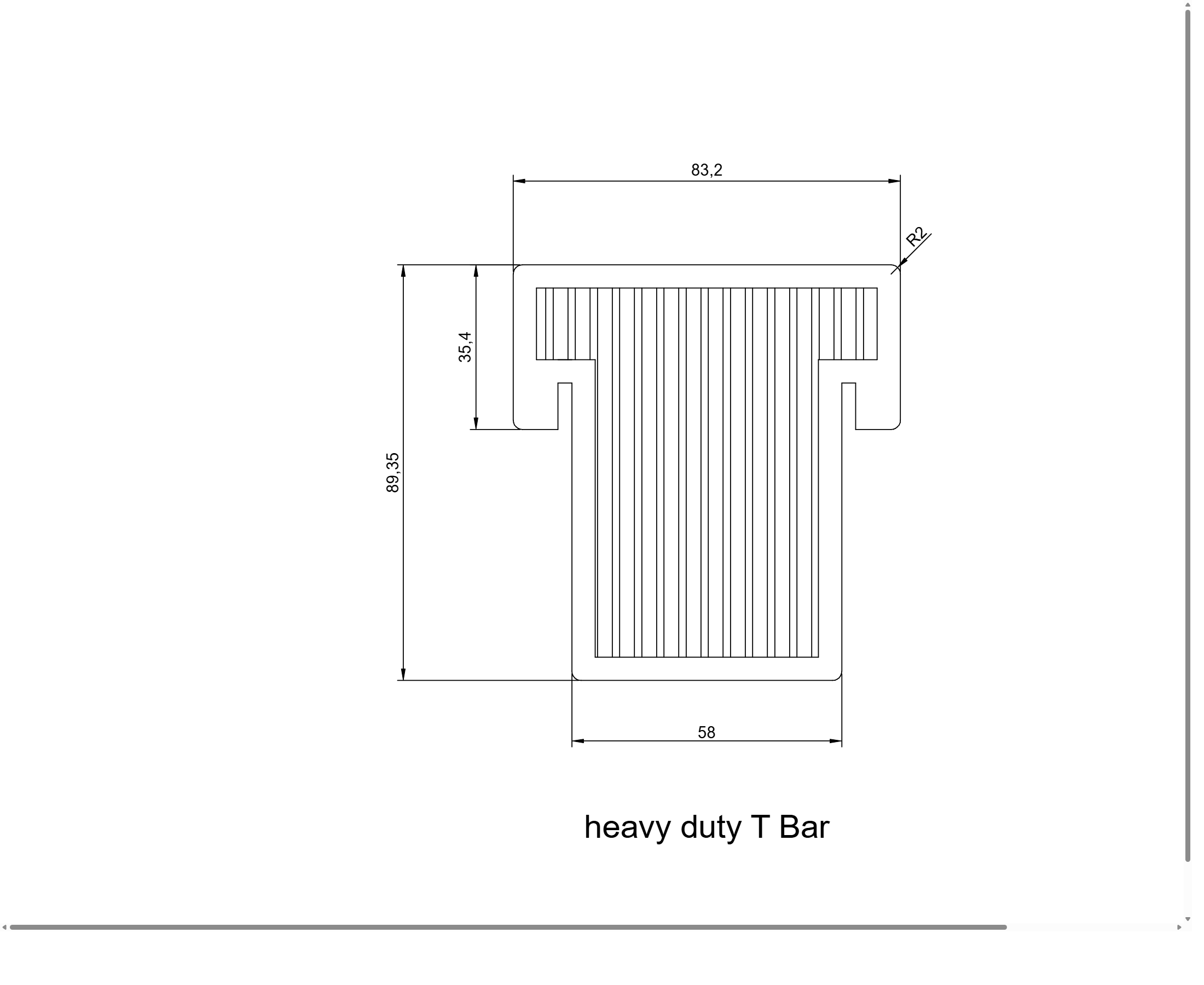

Heavy Duty T Bar — Cross Section

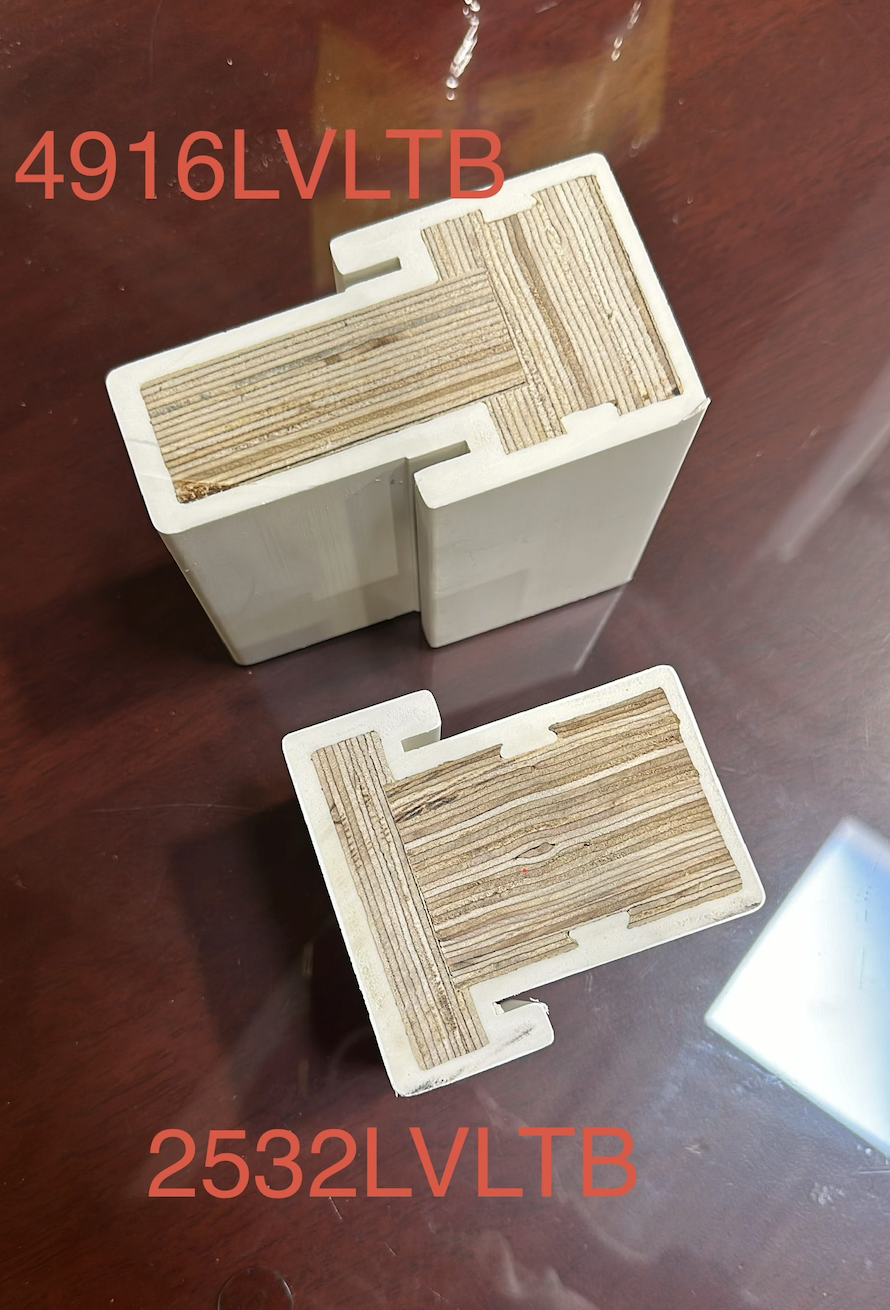

4 9/16" T-Bar (4916LVLTB)
Lengths83" and 99"
CoreLVL (Laminated Veneer Lumber)
ShellCellular PVC wrap
FinishSmooth White / Wood Grain
Heavy Duty T-Bar (2532LVLTB)
Width83.2 mm (3 1/4")
Height89.35 mm (3 1/2")
Lengths84" and 100"
CoreLVL (Laminated Veneer Lumber)
ShellCellular PVC wrap
OptionWith or without T-Bar shoe
FinishSmooth White / Wood Grain
LVL CoreHeavy Duty OptionT-Bar Shoe Available2 Sizes
04
Door Hardware
PVC Astragal
Composite system fastened to the nonactive door in a double door system.
Profile Drawing ► PVC Astragal
PVC Astragal
Width3.220"
Height1.496"
TypeMachined & Non-Machined
Lengths (Machined)79" and 95"
Lengths (Non-Machined)82" and 98"
FinishSmooth White / Wood Grain
05
Door Accessories
Mull Cap
A cover that conceals the mull post seam at the exterior. Available in smooth white and wood grain.
Profile Drawing

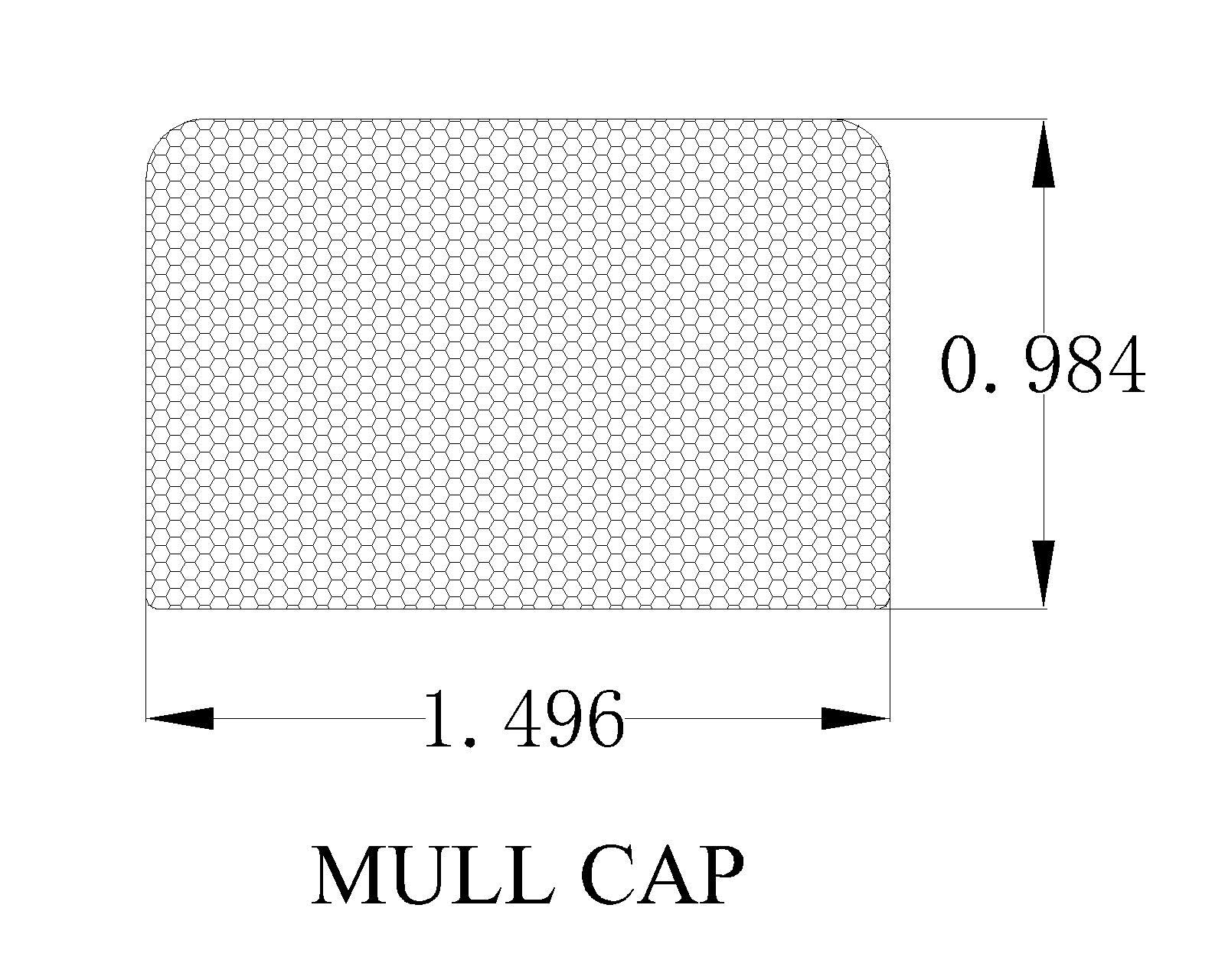

Mull Cap Profile
Mull Cap Specifications
ApplicationCovers mull post seam at exterior
FinishSmooth White / Wood Grain
06
Glazing Trim
Sidelite & Transom Bead
PVC glazing bead for sidelite and transom applications. Available in white and wood grain.
Sidelite Bead
Transom Bead
SideliteTransomWhite & Wood Grain
07
Moulding
Quarter Round
A moulding accessory available in smooth white.
Profile Drawing
Quarter Round
Width0.748"
Height0.748"
ProfileTrue quarter-circle
FinishSmooth White
